Xtracycle Electric EdgeRunner

Xtracycle Electric EdgeRunner

from 4,497.00

A capable modular design from the folks that started the cargo bike revolution in the US.

From the creators of the popular longtail FreeRadical and a vast catalog of multi-manufacturer compatible accessories and bikes, comes Xtracycle’s EdgeRunner.

Frame Style:
Motor:
Battery:
Quantity:
Add To Cart

Visit our Seattle location to get to know this bike in person. Our friendly staff will help you learn everything you need to know to make an educated investment in your next family bike.


OPTIONS

FRAME STYLE

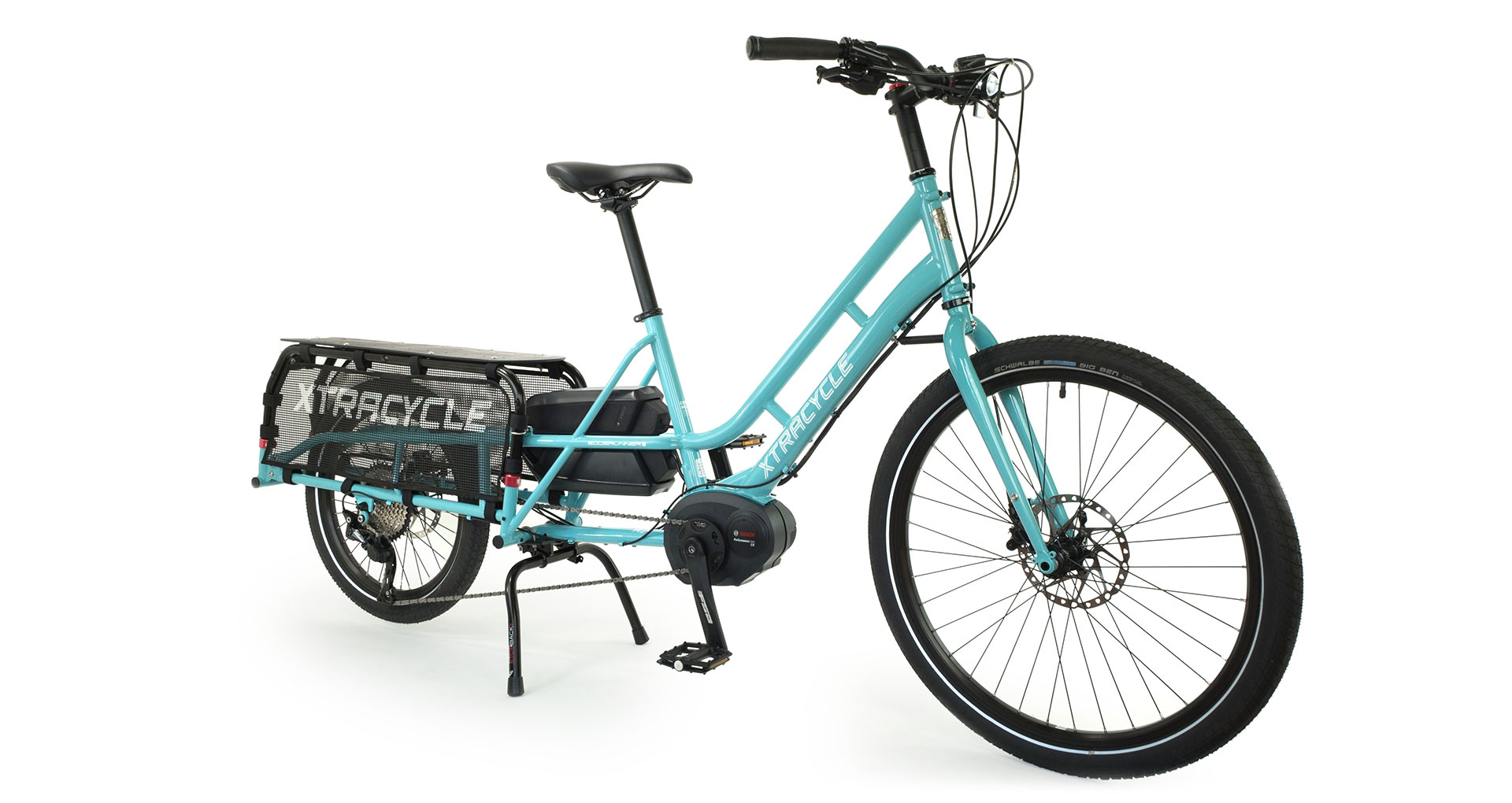

You can choose from two Edgerunner frame shapes: Classic & Swoop. The big difference is what we call “step-over height”—how high you need to step to get on and off the bike.

MOTOR

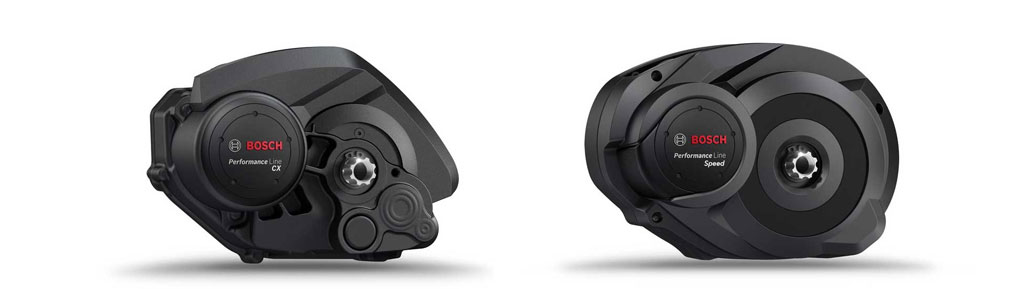

Xtracycle's Electric EdgeRunner can be built with either the Bosch CX Drive High Torque Motor, or the Bosch Performance Line Speed motor that can propel you up to 28 mph.

BATTERY

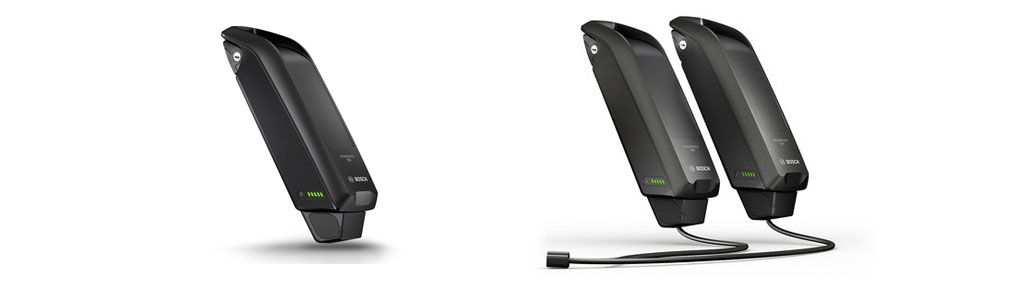

Bosch makes two different battery sizes (400 Wh and 500 Wh) and the new dual battery system available on the EdgeRunner allows you to run 1 or 2 batteries, resulting in up to 4 battery capacity options from 400 Wh to 1000 Wh depending on your range needs.



HIGHLIGHTS

  • Incredible worksmanship & quality. Xtracycle doesn't mess around when it comes to well thought out designs.
  • Fantastic handling. Xtracycle worked long and hard to crack the longtail handling nut.  The EdgeRunner is easy to ride, loaded or not.
  • The right materials to achieve the right feel.  Xtracycle's frame is Cromoly steel for supple ride feel.  Racks and accessories are aluminum for light weight and rigidity.
  • Tremendously configurable.  The new EdgeRunner Electric offers choice of frame style (diamond frame (classic) or step-through (swoop)), motor (high-torque or speed), battery capacity, size (small and large)) and color (blue or black). We recommend coming in for a test ride to fully understand all the options.
  • One of our most popular bikes.  The EdgeRunner Electric and its non electric brethren remain one of our most popular bikes because of their quality, versatility and amazing ride feel.
  • Works with all of Xtracycle's high-quality accessories, including the revolutionary Hooptie.
  • Compatible with Rolling Jackass center stand. Seattle-designed and builtfor ultimate stability and safety.
  • Can be enhanced with Car Sick Design's excellent cargo bike slings. An alternative to Xtracycle bags, these US made  bags are commissioned especially for our shop!

SUMMARY

What makes this cargo bike unique is the 20” rear wheel. This small wheel design creates a much more stable ride than other longtail bikes. The small wheel also shortens the overall bike length which increases the ease of storage and lowers the center of gravity of the cargo and/or passengers preserving a natural ride experience.

What makes this cargo bike unique is the 20” rear wheel. This small wheel design creates a much more stable ride than other longtail bikes. The small wheel also shortens the overall bike length which increases the ease of storage and lowers the center of gravity of the cargo and/or passengers preserving a natural ride experience.

WARRANTY

Xtracycle warranties their frame for life.  Individual accessories and components have a 1 year limited warranty. Bosch components carry a 2 year warranty.


SPECS

FRAME Chromoly
FORK Chromoly
SIZE S/M, M/L
BIKE WEIGHT 65 lbs and up
MOTOR Bosch - CX Drive or Speed
TORQUE 60Nm or 67Nm
BATTERY Single or Dual (400, 500, 800, or 1000Wh)
CONSOLE Bosch Intuvia
RANGE 40 to 100 mi or more (see Battery)
ASSIST MAX 20 mph or 28 mph (see Motor)
LIGHTING Included
WHEELS 26"/20" double-wall rims
SPOKES 36 Spokes Front & Rear
TIRE Schwalbe Big Apple
HUB Formula DC-91 Sealed Bearing
SEAT Xtracycle Anatomic Saddle
SEATPOST 31.6mm, 350/400mm, SM/LG
BRAKE Shimano Deore Hydraulic
DRIVETRAIN Shimano Deore 10-speed
SHIFTER Shimano Deore 10-speed
HANDLEBARS 640mm Width, 25mm Rise
HEADSET FSA Pig DH Pro
STEM 70/120mm Extension S/LG
FENDERS Optional
MAX BIG KIDS 2
MAX TODDLERS 3
REAR RACK Yes
FRONT RACK Yes
CHAIN GUARD Yes
KICKSTAND........... Yes
