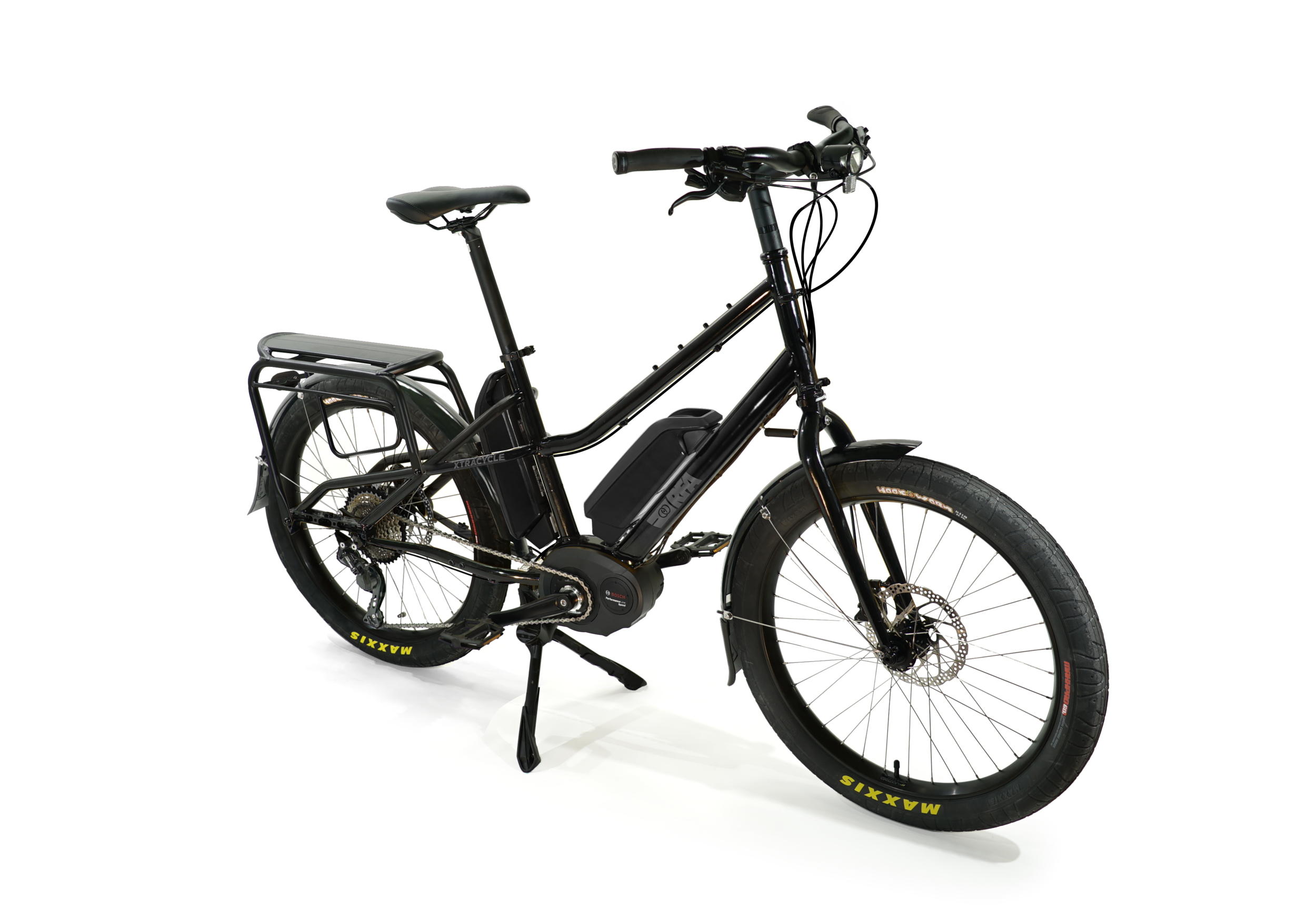

Xtracycle RFA

Xtracycle RFA

from 3,997.00

A unique design allows you to switch between Sport and Utility mode, or short-ish and long-er Utility mode is great for carrying kids. Sport mode keeps your bike short and nimble.

The RFA comes equipped with Bosch mid-drive, helping you do everything from climbing mountain passes to speeding across flat expanses.

Mode:
Battery:
Motor:
Quantity:
Add To Cart

Visit our Seattle location to get to know this bike in person. Our friendly staff will help you learn everything you need to know to make an educated investment in your next family bike.



RFA means ready for anything

RFA can carry two kids in or out of Yepp seats, four standard pannier bags, or any of our RFA X3 Bag System components. With our modular Utility MultiRack, you can carry almost anything you can imagine or need. We’ve even engineered in the ability to rotate the handlebars 180 degrees, so the RFA Utility fits on bus racks, car racks, and elevators. Perfect for compact spaces and growing families that need to carry kids and cargo.

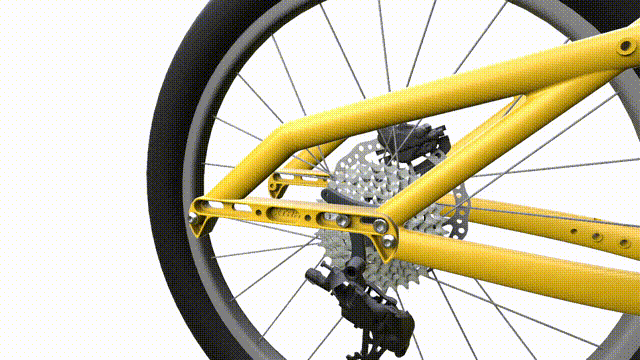

xtracycle-dynamic-drops

RFA is the transformer of cargo bikes

Our patent-pending DynamicDrops are the answer. The rear wheel has two possible mounting points on the same frame. The forward position gives you a standard bike wheelbase. The back position gives you the wheelbase of a midtail cargo bike, about 5-1/2 inches longer. Purchase the bike in the mode you need now. Later on, when life changes, adapting the bike to those different needs is a painless, low-cost process.


OPTIONS

MODE


Set up in sport mode it has the wheelbase of a standard bicycle and a zippy, agile feel. In utility mode the bike is a fully capable mid-tail cargo bike.




MOTOR


Xtracycle's RFA can be built with one of 3 motors from Bosch: the High Torque CX Drive, the All Around Performance Drive, or the Performance Line Speed motor that can propel you up to 28 mph. more on motors

BATTERY

xtracycle-rfa-dual-battery

Choose between 3 battery capacities - 400 Wh, 500 Wh, or 1000 Wh using two reliable Bosch batteries. To achieve the super-capacity 1000Wh battery capacity, RFA leverages the Bosch dual-battery system.



HIGHLIGHTS

  • Signature Safety Fork. Unflinchingly strong 4130 Chromoly, Unfailingly steady Thru-Axle wheel mount.

  • Three motor/battery configuration. Eco: Bosch Performance Drive with 400wh battery • Stout: Bosch Performance CX with 500wh battery • Marathon: Bosch Performance Speed with 1000wh battery

  • Unstoppable Quality. Deore hydraulic disc brakes, Brightsight lights and chromoly frame - whether you need to navigate potholes on city streets or down a dirt trail to a secluded campsite, the chromoly steel frame steals the show!

  • Rock-steady. Super-stable jumbo center stand comes standard, for safe, easy loading and unloading.

  • Sport-Utility MultiRacks. The stout RFA Sport MultiRack can carry up to 2 panniers on the sides and anything you can imagine on top. The high-capacity RFA UtilityMultiRacks can carry 4 standard panniers or any of our 12 custom, configurable components such as: passenger bars, footrest, surfboard rack, baby seats, etc.

  • Where the Rubber Meets the Road. The RFA platform was engineered to allow riders to choose between 24- and 26-inch wheels.

  • Big Heart, Strong Bones. The RFAs’ sturdy-yet-supple 4130 chromoly frame is burly, built to last (and in a pinch, repairable by a dusty roadside welder). It’s not only durably powder-coated on the outside but it’s 100% dipped – frame coated inside and out – with durable anti-corrosion ED black. We expect you to be riding it around the world and then handing it off to your grandchildren.


WARRANTY

Xtracycle warranties their frame for life.  Individual accessories and components have a 1 year limited warranty. Bosch components carry a 2 year warranty.


SPECS

Sizes S, M, L
Frame & Fork 100% Chromoly
Front Brake Shimano Deore Hydraulic
Headset FSA Mallet
Weight 44 - 59 lbs
Rear Derailleur Shimano Deore 10-Sp Shadow+
Crank FSA CK-745 for Bosch, 170mm,
Chainrings 19t Cog (CX) or 20t Cog (Speed)
Cassette SunRace 11-42t
Motor Options Bosch Performance (20mph)
Bosch Performance CX (20 MPH)
Bosch Performance Speed (28 MPH)
Battery Options 400Wh
500Wh
1000Wh (Dual Battery)
Display Bosch Purion/Kiox
Chain.................... KMC X10E for E-Bikes
Front Hub Shimano Deore XT + 15mm Thru Axle
Rear Hub Shimano Acera FH-M3050 (168mm QR)
Front Rim 24” Alex MD-40/36H Double Wall
Rear Rim 24” Alex MD-40/36H Double Wall
Spokes 14/15G Stainless, Brass Nipples
Tires Maxxis Hookworm 24 x 2.5
Seat Collar 34.9mm QR
Seat post 300mm (S), 400mm (M), 450 mm (L)
Saddle Xtracycle Comfort
Kickstand Ursus 80 Jumbo Double Leg Kickstand - 300mm
WheelSkirts Included
Bags Optional

SIMILAR BIKES

Product details and specs are subject to change, errors and omissions.
